File upload
The user is able to upload files to the server by using submission.
File upload can be specified by setting Submission mediaType to multipart/form-data. However, even though it is set to another value, the previous set value is ignored and it is processed as a multipart/form-data when adding uploading file in submission.
| Protocol | Description |
|---|---|
| multipart/form-data;encoding=json | Each uploaded file is separated into individual parts, and DataSet and DataMap data including parameters are packaged as one JSON Object and sent to the server. |
| multipart/form-data | All data transmitted to the server, such as uploaded files, DataSet including parameters, and DataMap data, are separated into individual parts and transmitted to the server. |
How to set file upload

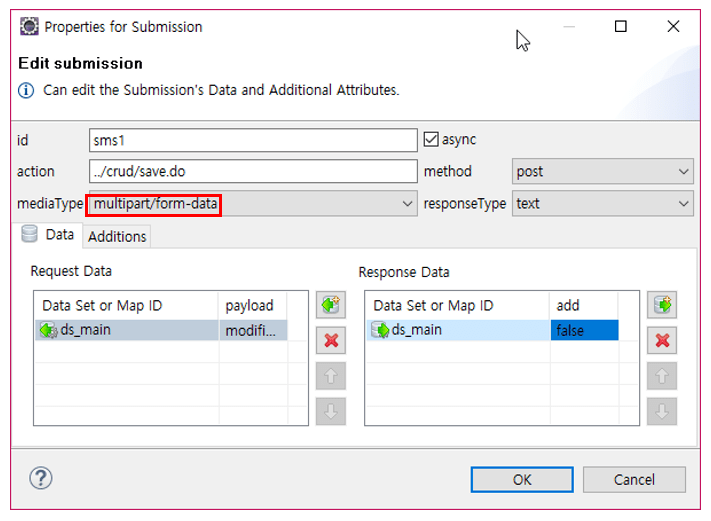

Set file upload in submission property dialog box
Example of script code
/**
* @type cpr.protocols.Submission
*/
var subSave = app.lookup("sub_save");
subSave.addFileParameter("fileparametername", file);
subSave.send();
User can upload multiple files at the same time.
User can send DataSet, DataMap and Parameter with file.
